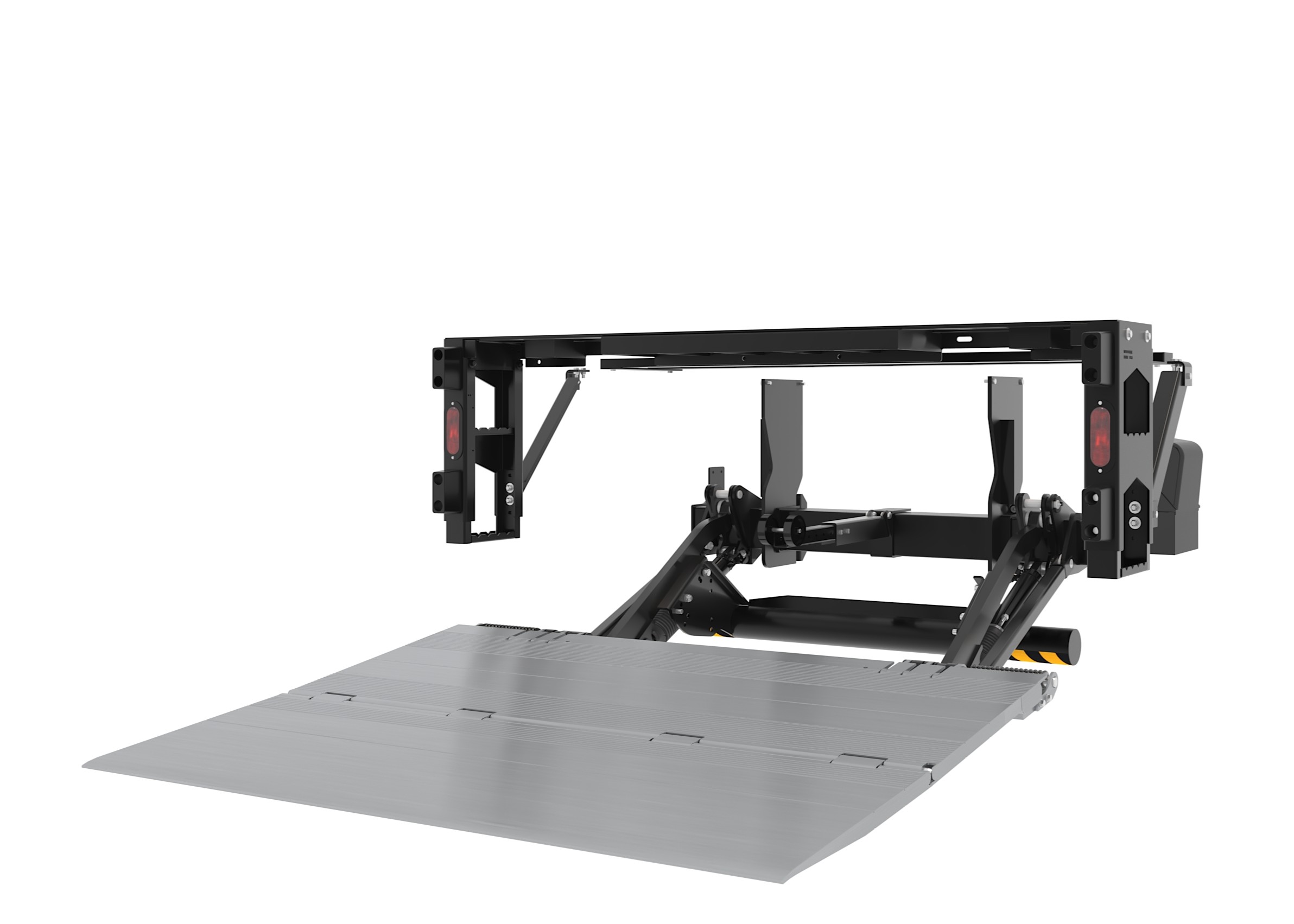

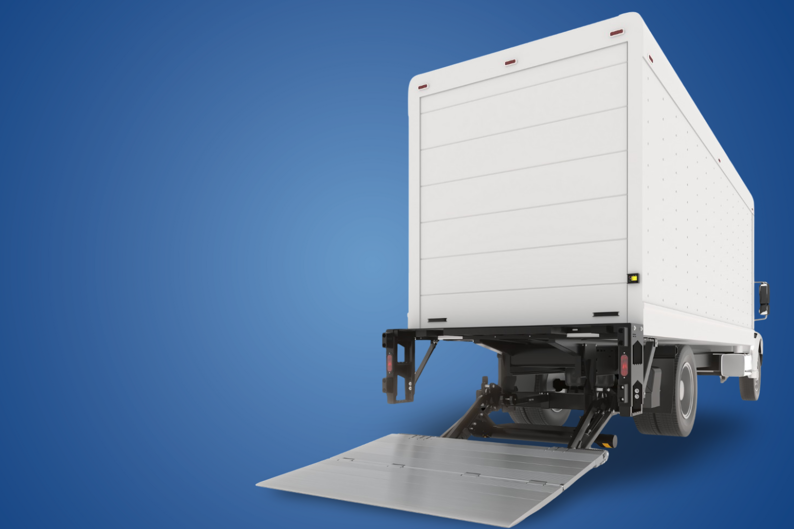

With a lifting capacity of 3,300 pounds and tilt-up level-ride functionality, this liftgate is durable and customizable, perfect for a variety of applications.
Up to 3300lbs. Capacity
Platforms up to 56 x 78
Power Down comes standard on the REP33 and offers consistent movement of the platform when lowering.
Coming in at only 620-648 pounds and lifting more than 5x its own weight, the REP33 packs a powerful 3,300-lb lifting capacity in a lightweight, compact design.
Available Models
Model
Capacity
Load Area
Taper
Bed Height Range
Weight
Applications
Spec
REP33 EA48
3300
48 x 78
Wedge
38 - 59
620
A, B
REP33 EA56
3300
56 x 78
Wedge
42 - 59
648
A, B
Minimum bed height range is laden. Maximum bed height range is unladen.
Must add optional bed-extension weight and optional bumper bar weight for total installed gate weight.
Aluminum platforms lose 14-inches of loading depth when cart stops are deployed.
For detailed specifications for the REP33, please click HERE
Applications
Code
Description
A
96" Wide Bodies
B
102" Wide Bodies
Available Platforms
EA48
2-piece, 48-inch-deep, wedge taper, extruded aluminum platform (w/ 25" base and 23" flipper)
EA56
2-piece, 56-inch-deep, wedge taper, extruded aluminum platform (w/ 29" base and 27" flipper)
Included Features
Platform Flags
Secured on underside of liftgate, visible when lift is stored or in use
Fixed Toggle Control (REP Series)
a fixed, side control panel to operate the liftgate
2-function Pendant Control
12-foot, two-function corded pendant control with socket.
Standard Power Cable
39-foot, 2-gauge, full length power cable
Power Down
consistent movement of platform when lowering
Available Options
Bed Extension REP 33 - 96"
300 pound, 12.6-inch deep, reinforced steel bed-extension; with 21 - 35-inch, bolt-on side steps, including rubber dock bumpers.
Bed Extension REP 33 - 102"
326 pound, 12.6-inch deep, reinforced steel bed-extension; with 21 - 35-inch, bolt-on side steps, including rubber dock bumpers.
Bumper Bar (REP33)
81 pound, steel bumper bar
Cart Stops
used to secure wheeled cargo
Platform Lights
flashing lights on platform when liftgate is activated
Foot Controls
foot activated controls on liftgate platform for hands-free operation
In-Cab, Shut-Off Switch
disables power to the liftgate along the power line
